Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: OEM
  • Model Number: DVB-T2 Mini
  • Color: Black
  • DC input range: DC5V 1A
  • Power consumption: 10W(max)
  • USB: 1 x USB2.0 interfaces
  • Aspect ratio: 4:3, 16:9
  • Standard: ISO/IEC13818-3 TR1011154

Packaging & Delivery

Packaging Details Gift box
Delivery Time Payment after ten days
Product Description

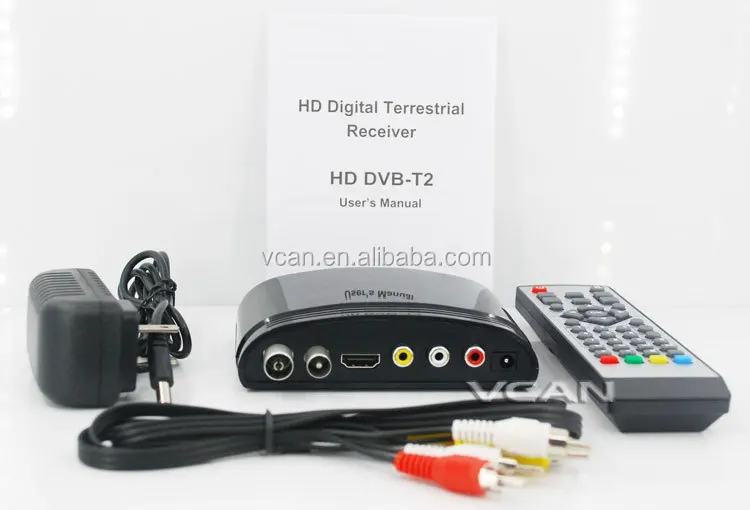

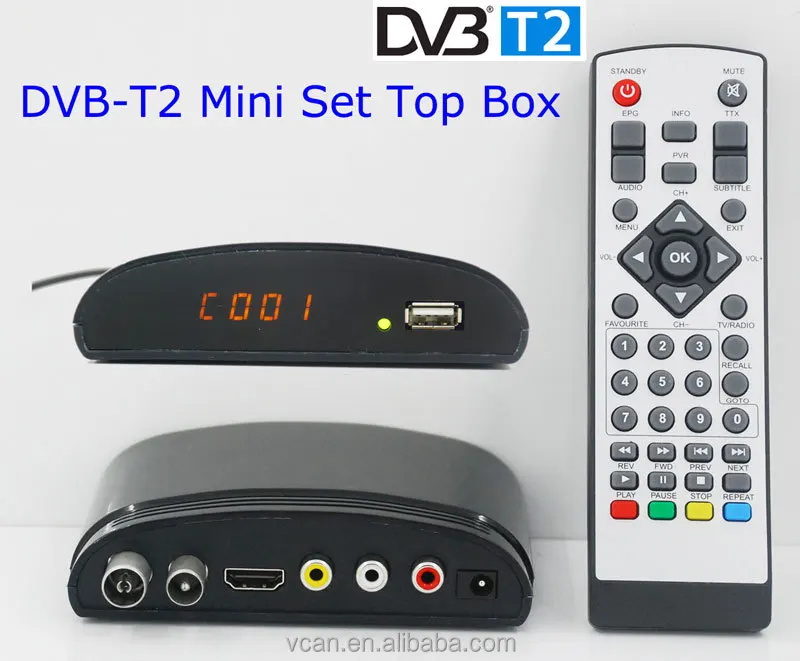

HD DVB-T2 mini Home Digital set top box HDMI USB record Thailand

Selling Points:


Mini, only 120mm
Mstar Chipset, Quality Guarantee
Full Function DVB-T2
HDMI output for HD TV
USB for Record / Upgrade / Multimedia play




1. Fully DVB-T DVB-T2 Standard compliant
2. Max 4000 Channels Memory Space
3. Multi-language OSD supported, Default Engilish
4. Firmware upgrade through USB port
5. Support Auto/NTSC/PAL and 4:3 16:9 wide screen
5. Full-Function IR remote control
7. Parental Lock function
8. Favorite channel groups
9. Channel search in automatic, manual search
10. Subtitle and Teletext support
11. 7 days EPG with detail information viewing
12. Support USB PVR recording function
13. Support Time-shift function
14. Various channel editing function (favorite, move, lock, rename).
15. Automatic Save for last channel.
16. External USB Hard Disk Support FAT32 and NTFS file system.
17. Watch & record the current channel.
18. Scheduled recording via EPG.
19. Wakeup automatically & record.
20. Antenna power supply.

21. LCN service.

22. VCAN offer Technology Support.





Input Connector

IEC 16902. Female

Input Frequency Range


Num of RF Inputs


Input impedance

75 ohm

RF output Connector

(bypass)IEC 169-2 Male

Loop through

47-862 MHz


System Resources


MSD 7802 chip+1236+MXL608 or RT836S Tuner

SDRAM memory

DDR2  512 Mb

Main Processor:

MSD 7802 chip  550MHZ

FLASH memory


Display Planes


Graphic resolution



Video Decoder


ISO/IEC 13818-2 and ISO/IEC 14496-10

Transport stream

ISO/IEC 13818-1

Video decoding

MPEG-2 SD/HD (MP@ML and MP@HL),   MPEG-4 H.264/AVC SD/HD

DivX 3.X ~ 6.X



Video resolution

576I, 576P, 720P, 1080I,1080P

Aspect ratio

4:3, 16:9




DC input range

DC5V 1A

Power consumption


Standby consumption
